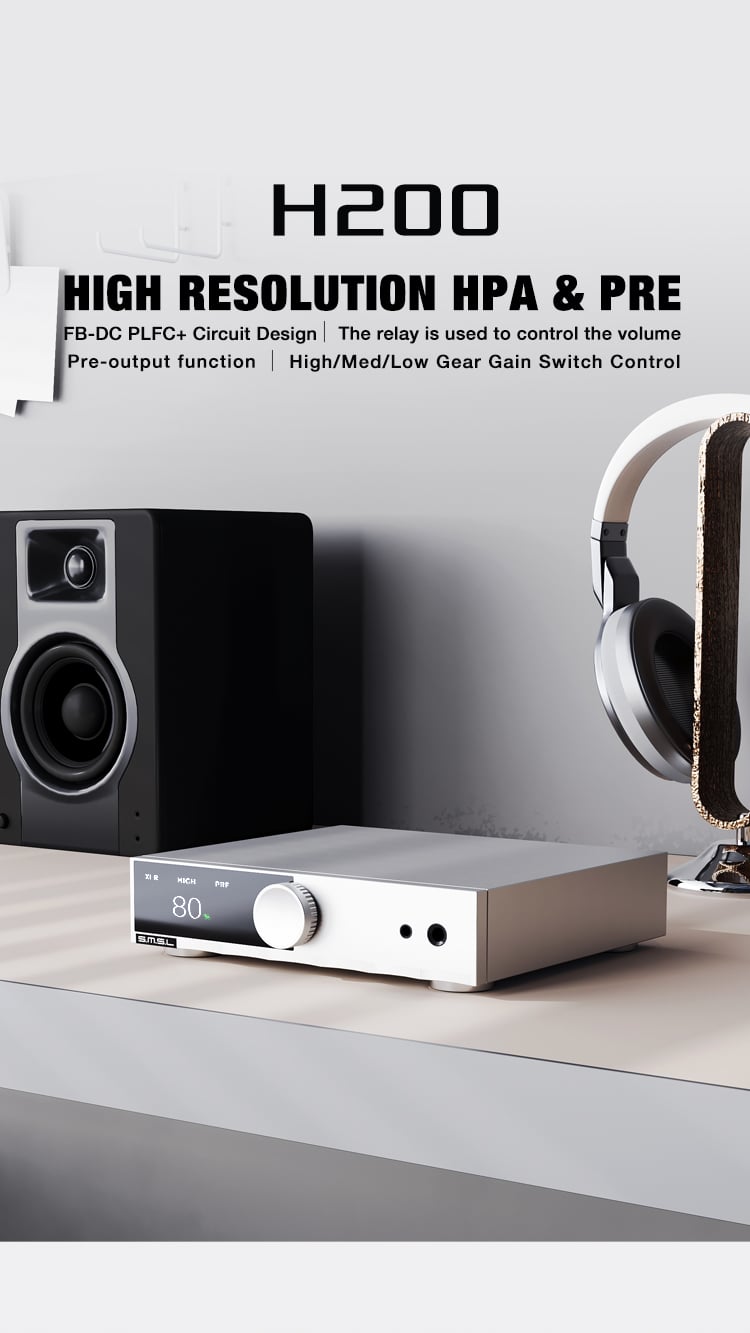

SMSL H200 Headphone Amp
S.M.S.L. AUDIO
- Australian Stock & Warranty
- Authorised Reseller
- Free Shipping
Found it cheaper somewhere else?
Request a price match.
Found a lower price?
Please complete the form below.
Price found at another internet retailer or their store:
This form is protected by reCAPTCHA - the Google Privacy Policy and Terms of Service apply.
This is a request only. We have the right to refuse any request at our discretion. We only accept requests from stores that have brand new stock and are authorized dealers. We do not accept requests from auction sites and marketplaces.
Description / SMSL H200 Headphone Amp

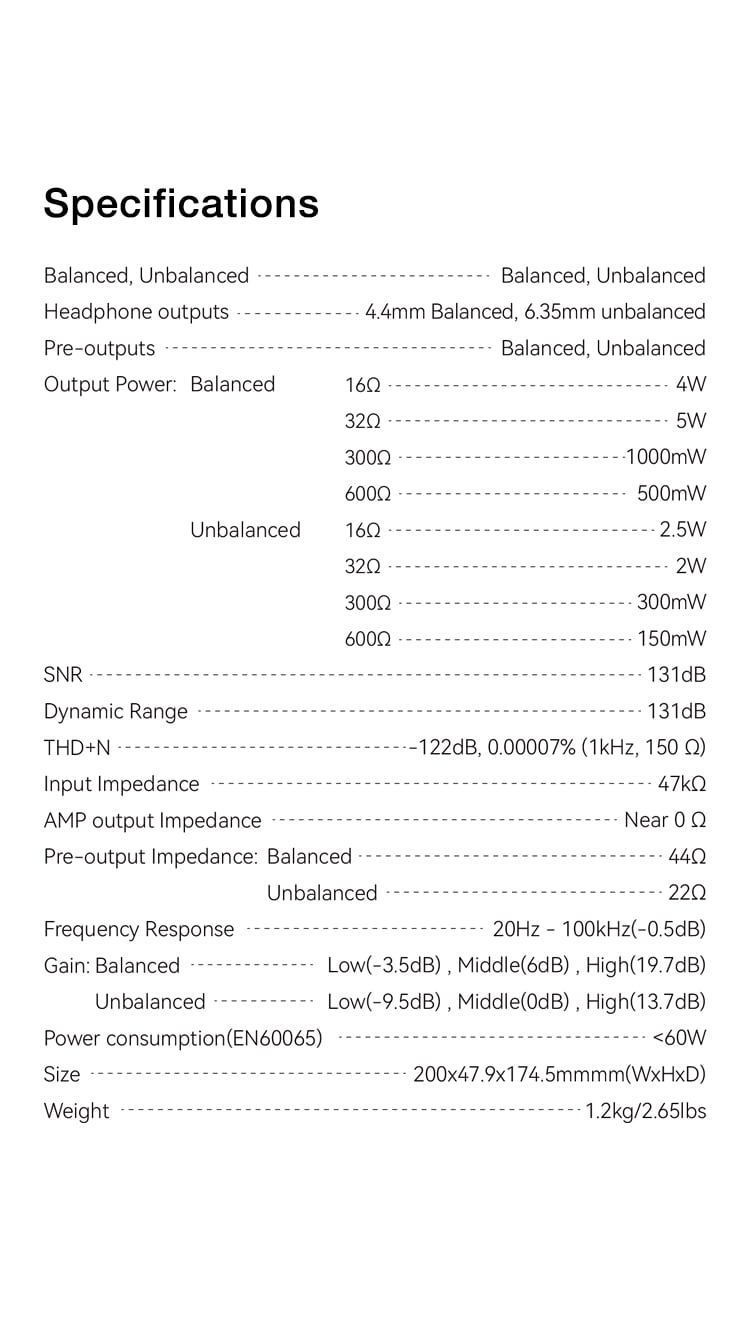

Specifications
| Balanced, Unbalanced | Balanced, Unbalanced |

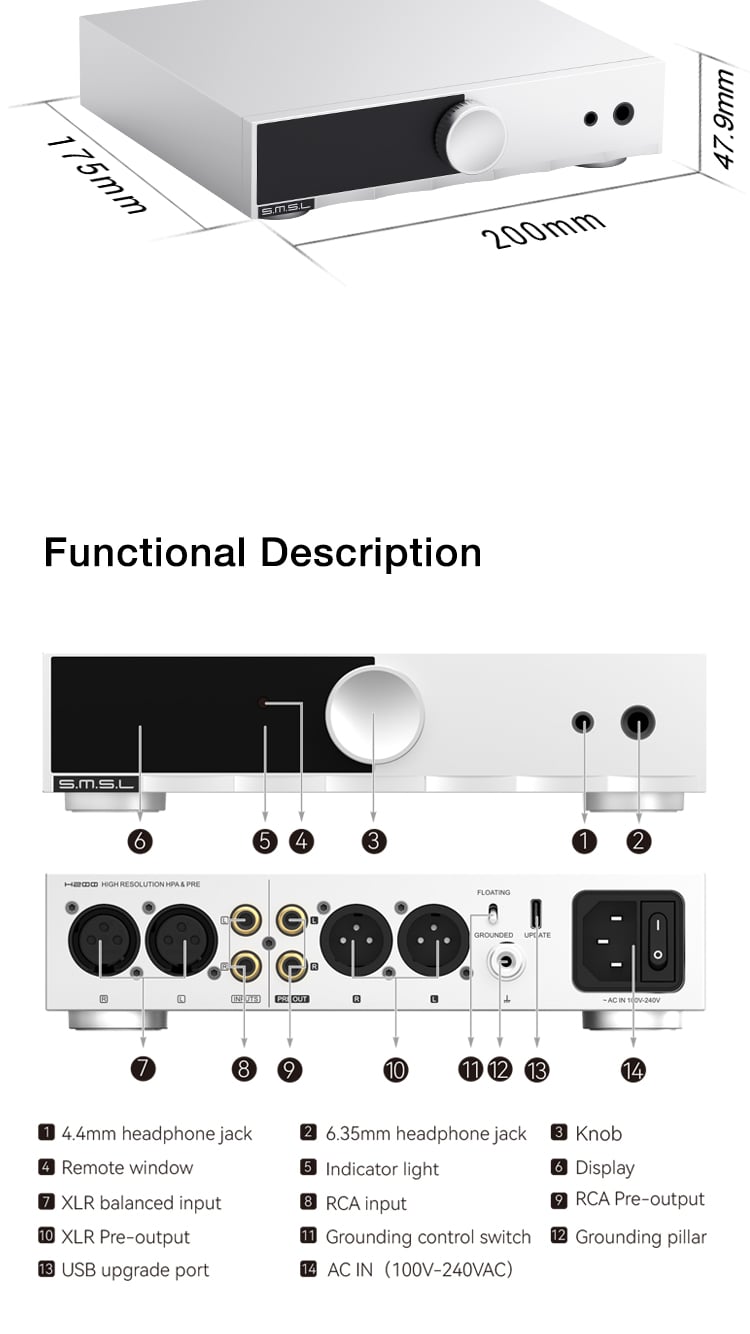

| Headphone outputs | 4.4mm Balanced, 6.35mm unbalanced |

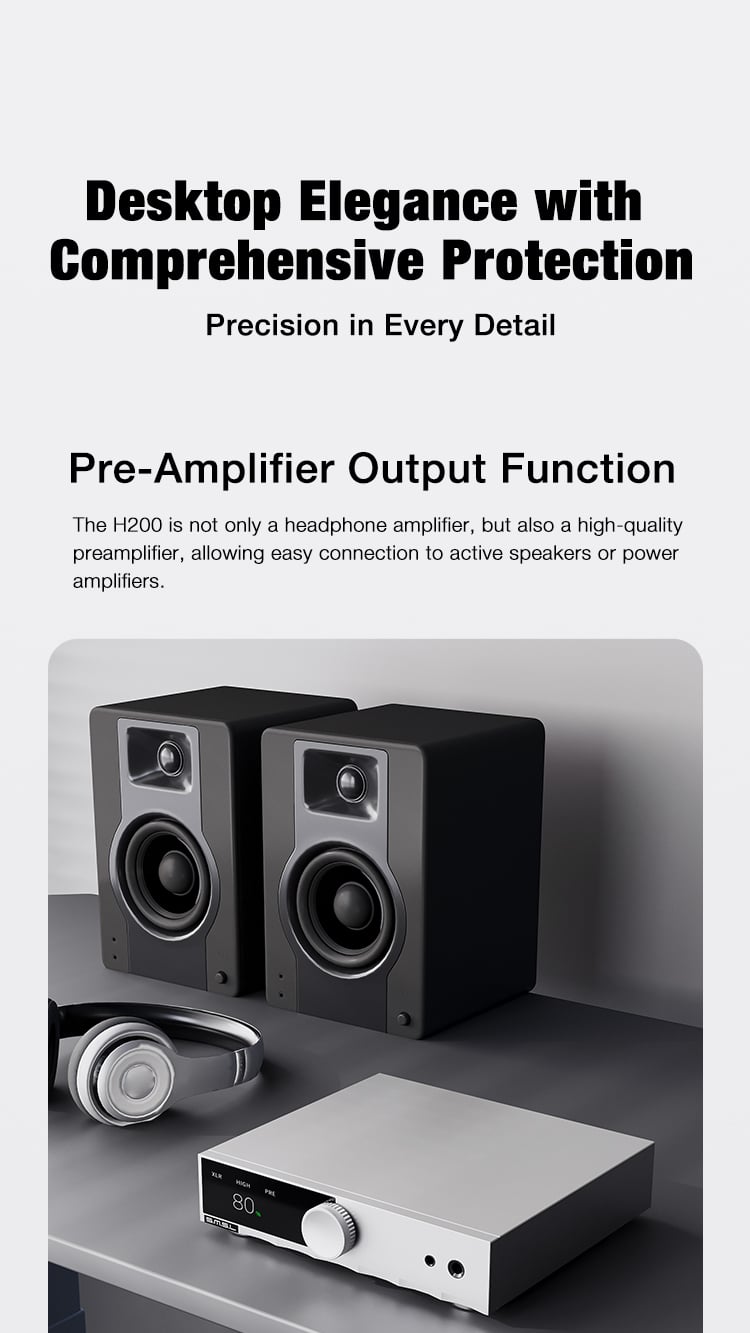

| Pre-outputs | Balanced, Unbalanced |
| Output Power Balanced (16Ω) | 4W |
| Output Power Balanced (32Ω) | 5W |
| Output Power Balanced (300Ω) | 1000mW |
| Output Power Balanced (600Ω) | 500mW |
| Output Power Unbalanced (16Ω) | 2.5W |
| Output Power Unbalanced (32Ω) | 2W |
| Output Power Unbalanced (300Ω) | 300mW |
| Output Power Unbalanced (600Ω) | 150mW |

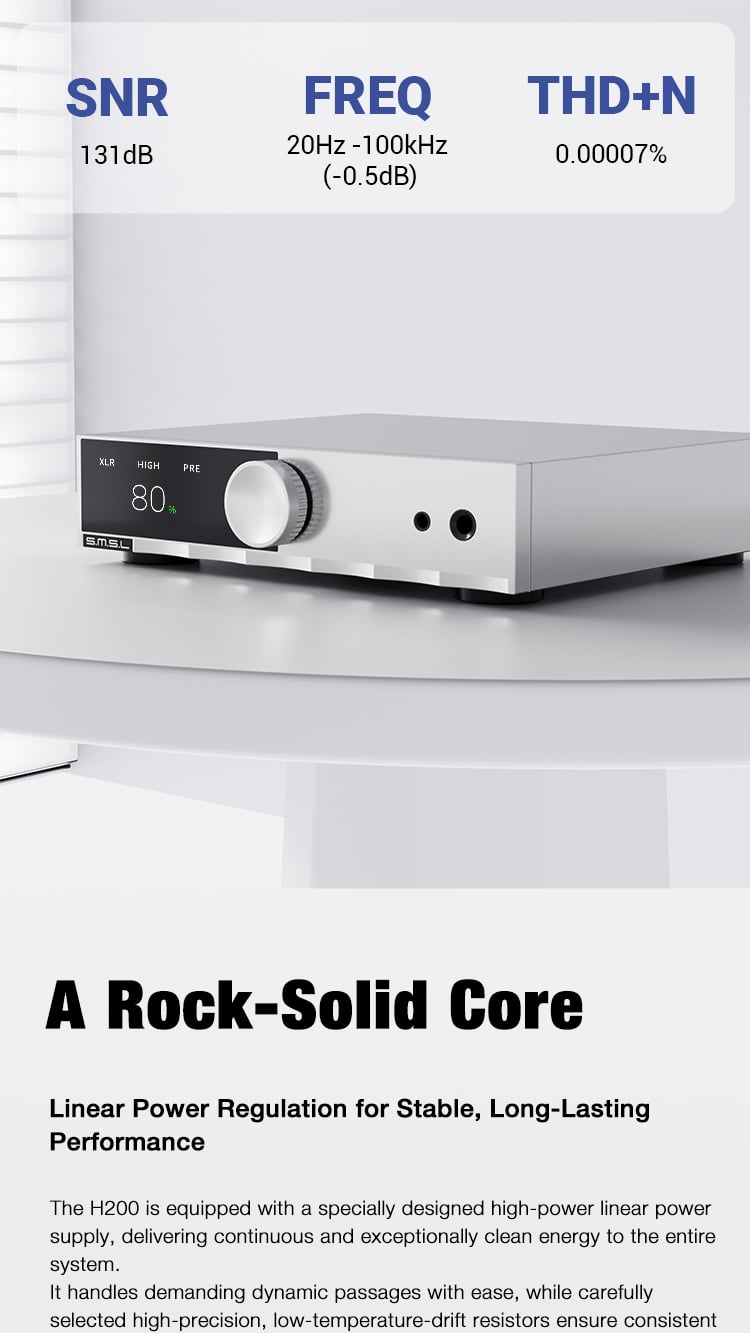

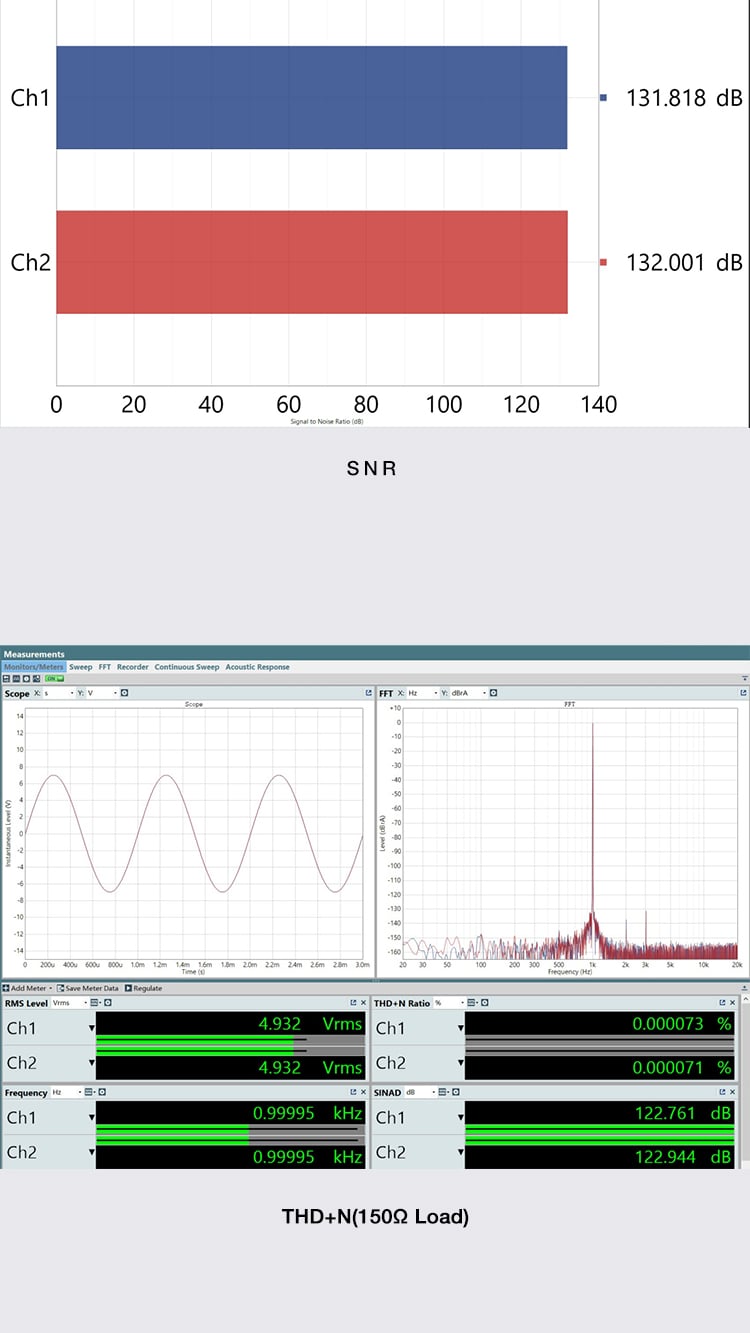

| SNR | 131dB |

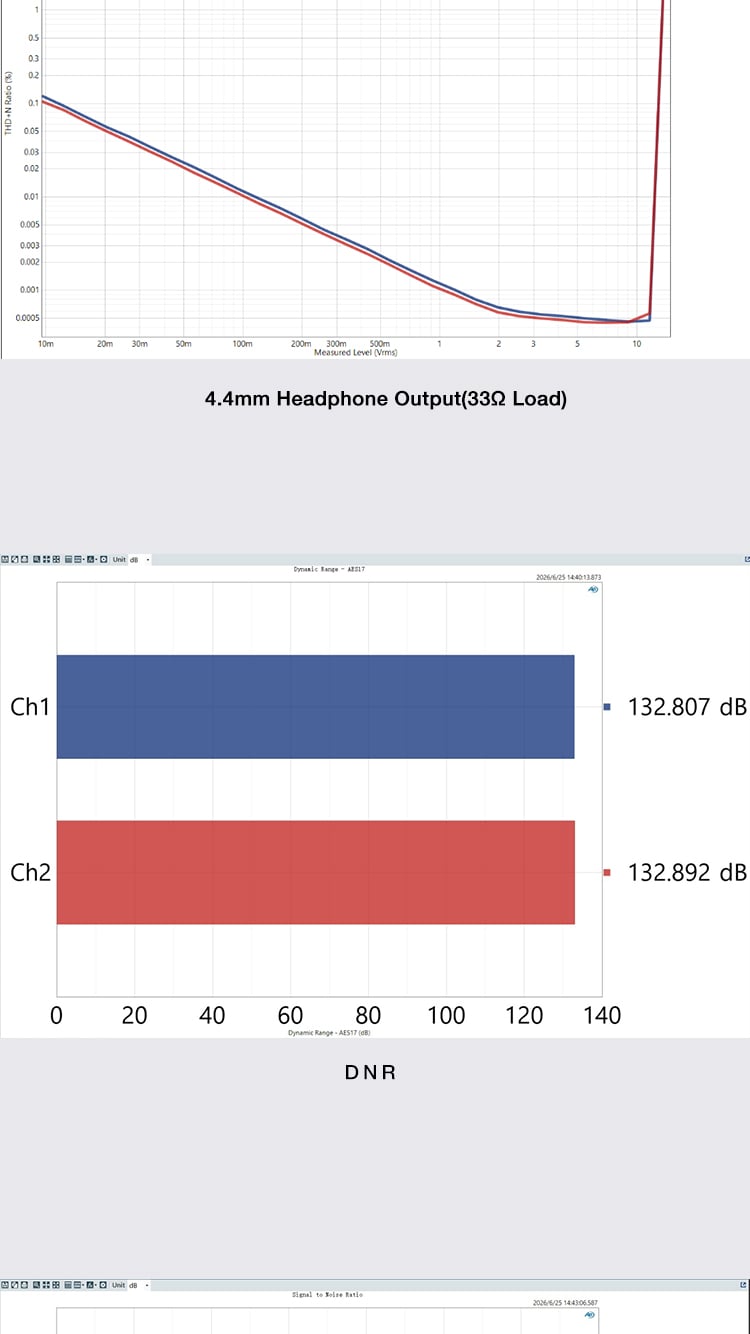

| Dynamic Range | 131dB |

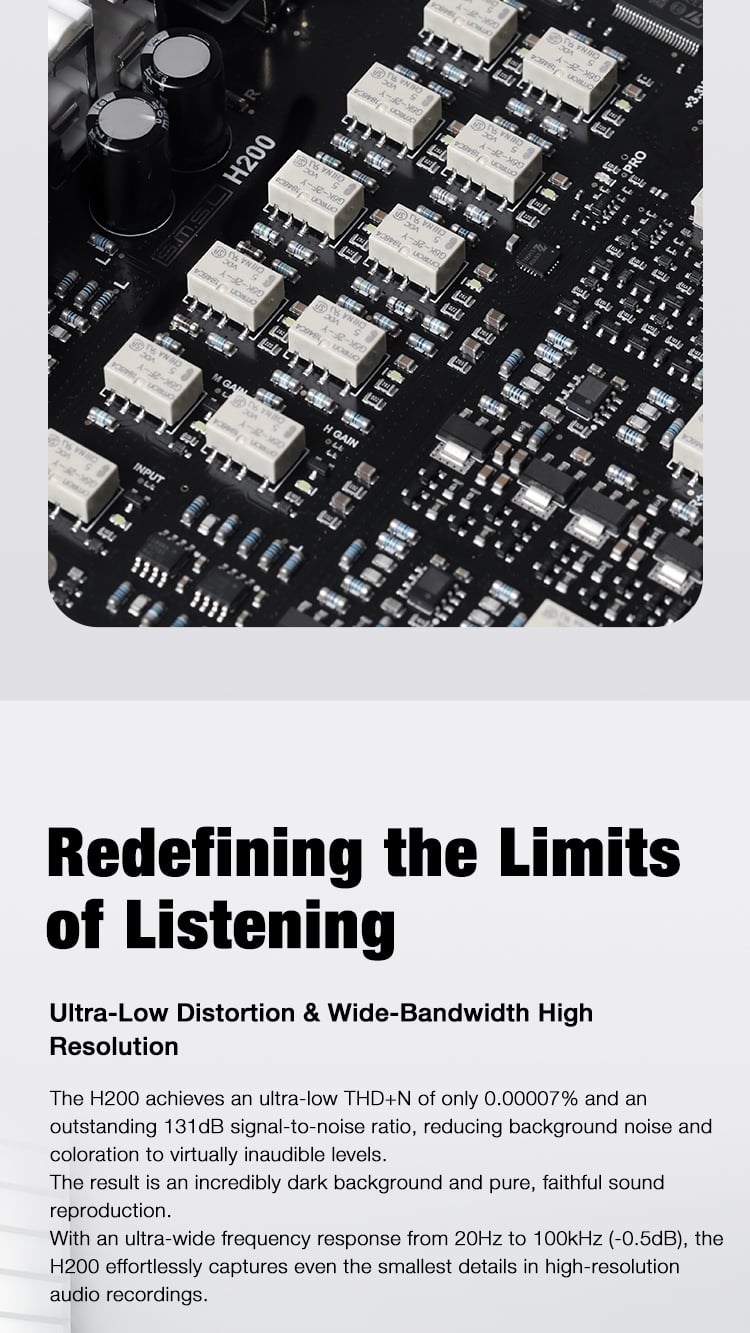

| THD+N | -122dB, 0.00007% (1kHz, 150Ω) |
| Input Impedance | 47kΩ |
| AMP output Impedance | Near 0Ω |
| Pre-output Impedance (Balanced) | 44Ω |
| Pre-output Impedance (Unbalanced) | 22Ω |

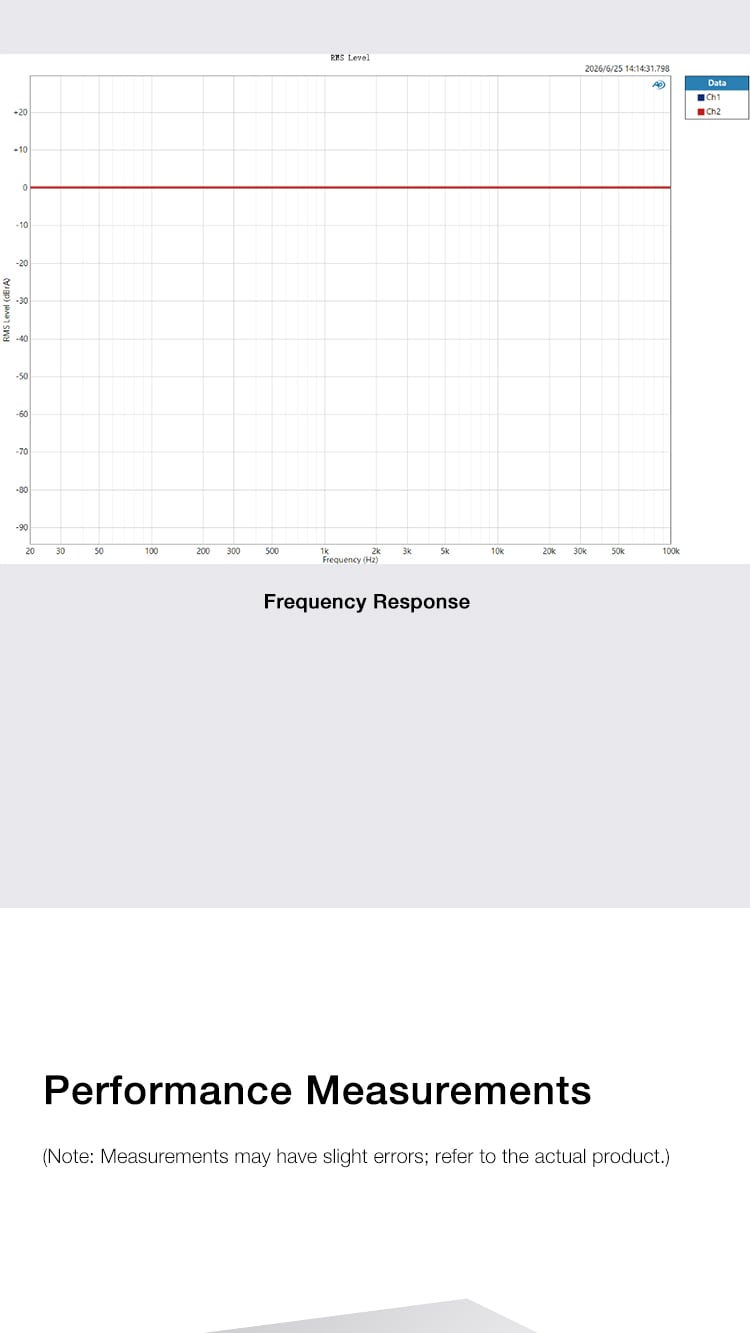

| Frequency Response | 20Hz – 100kHz (-0.5dB) |

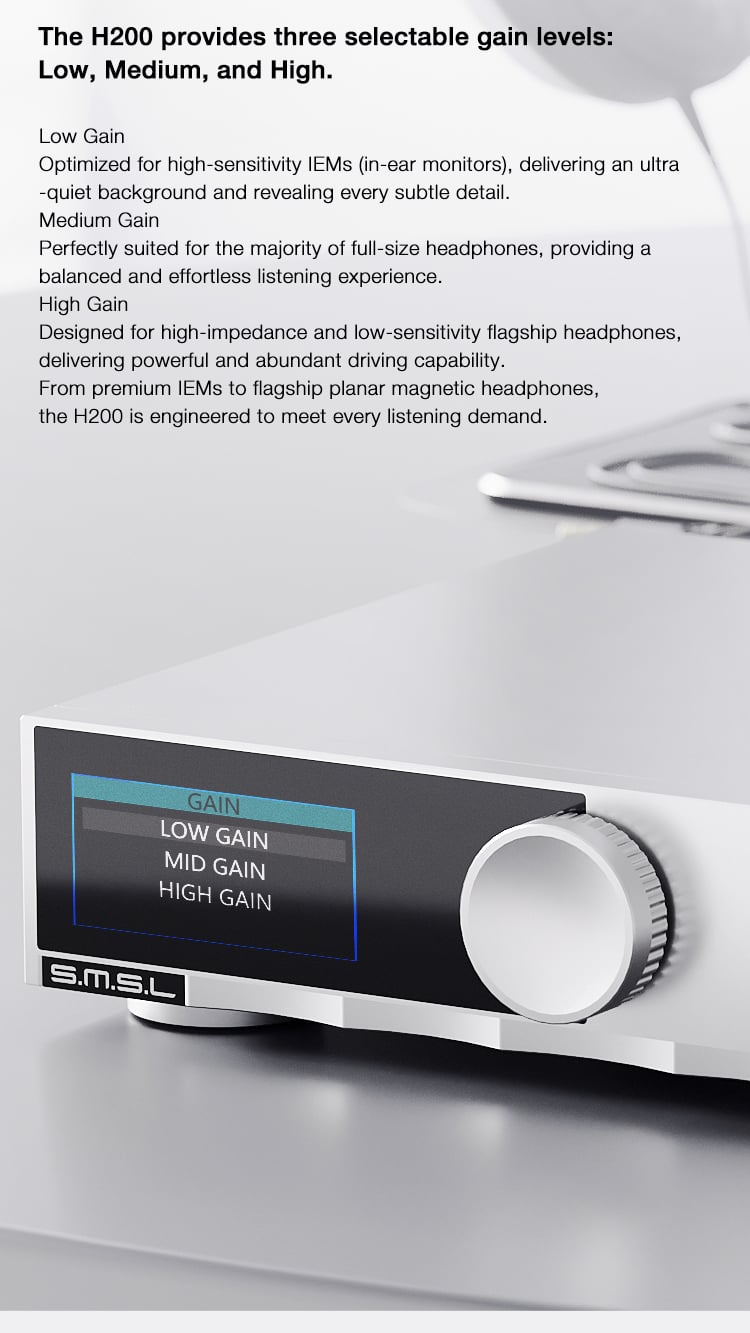

| Gain Balanced | Low(-3.5dB), Middle(6dB), High(19.7dB) |
| Gain Unbalanced | Low(-9.5dB), Middle(0dB), High(13.7dB) |
| Power consumption (EN60065) | <60W |

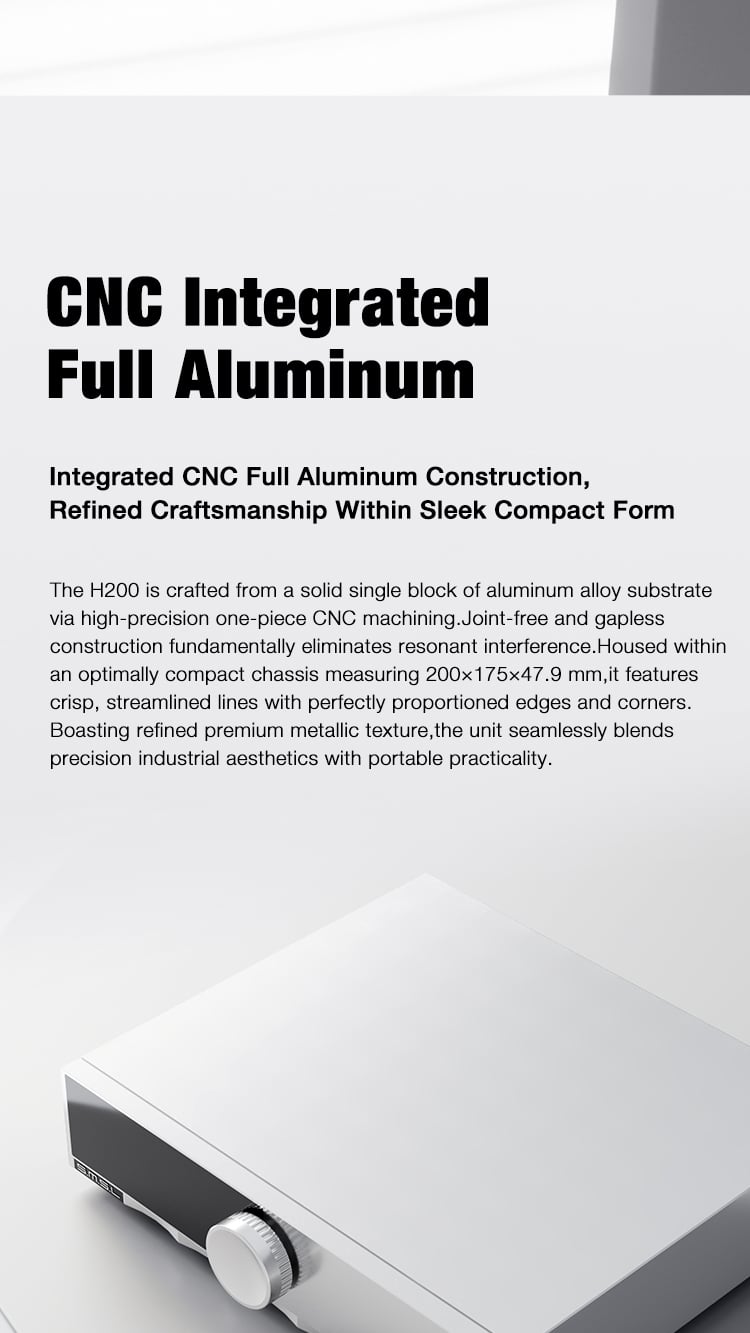

| Size | 200 x 47.9 x 174.5mm (WxHxD) |
| Weight | 1.2kg / 2.65lbs |
