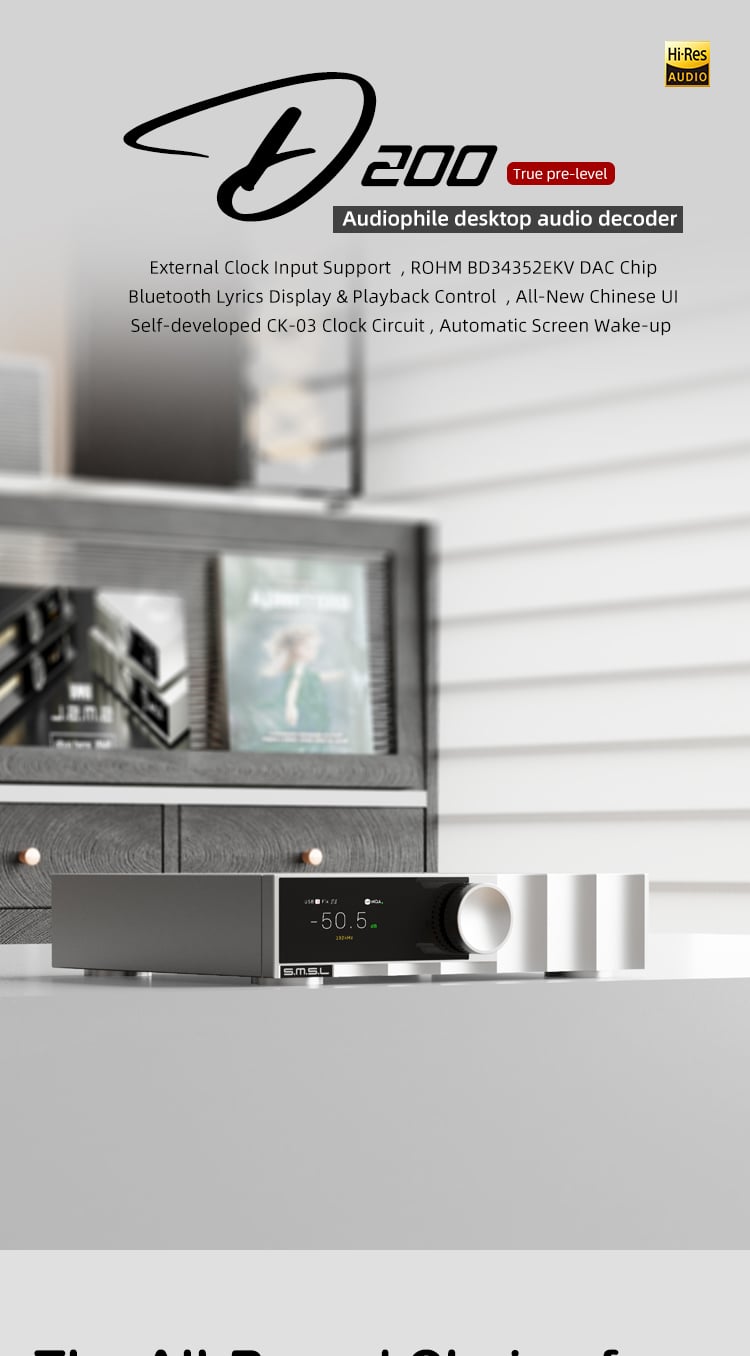

SMSL Audio D200 Desktop DAC
S.M.S.L. AUDIO
SKU: SMSLD200
New
New Stock
$499.00
Contact for availability
Description / SMSL Audio D200 Desktop DAC
Features

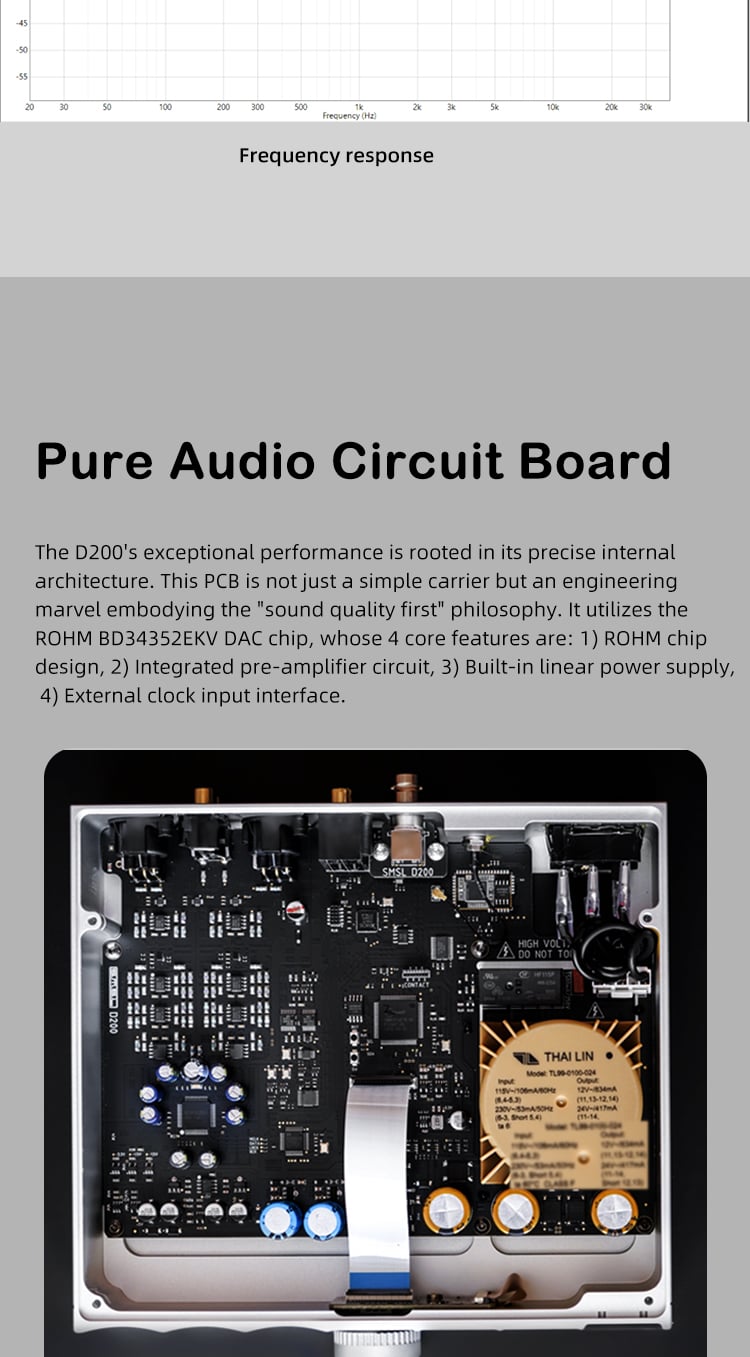

- ROHM BD34352EKV decoder chip with an integrated preamplifier circuit
- Self developed CK-03 clock processing circuit to reduce jitter

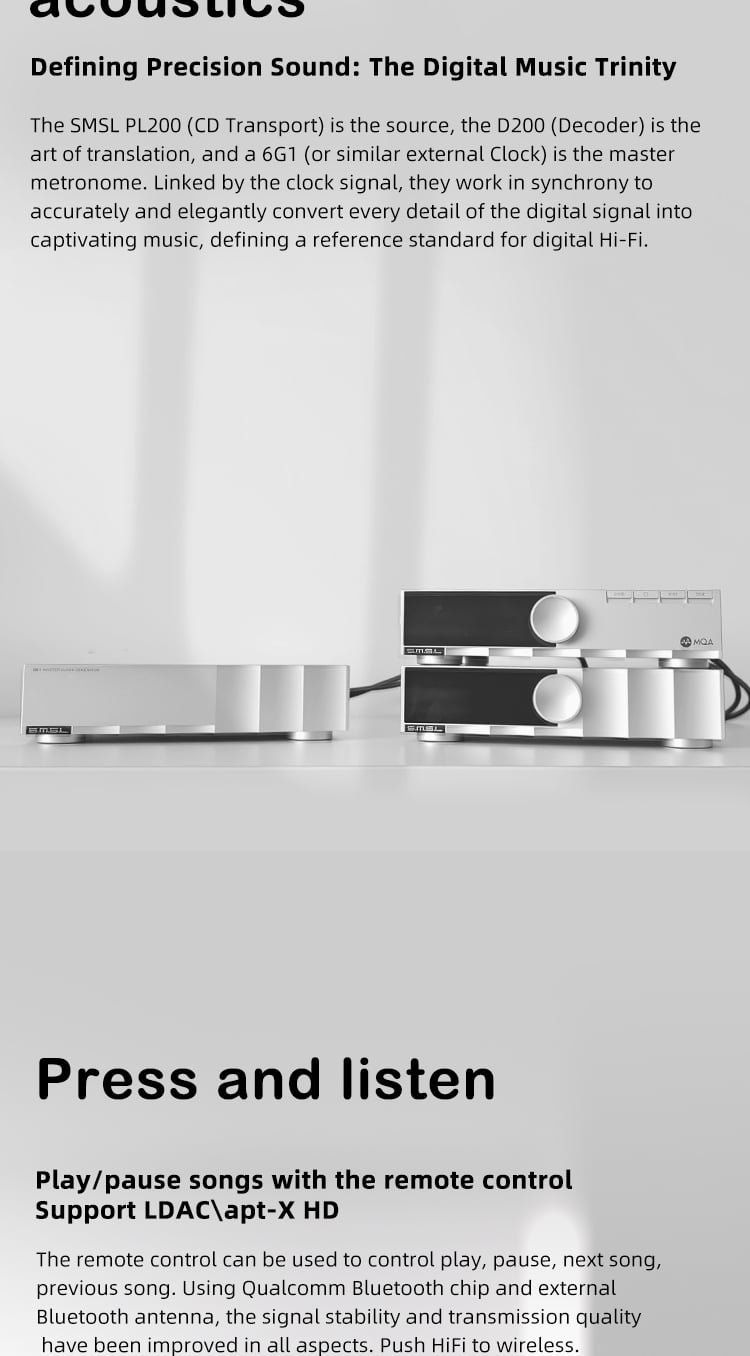

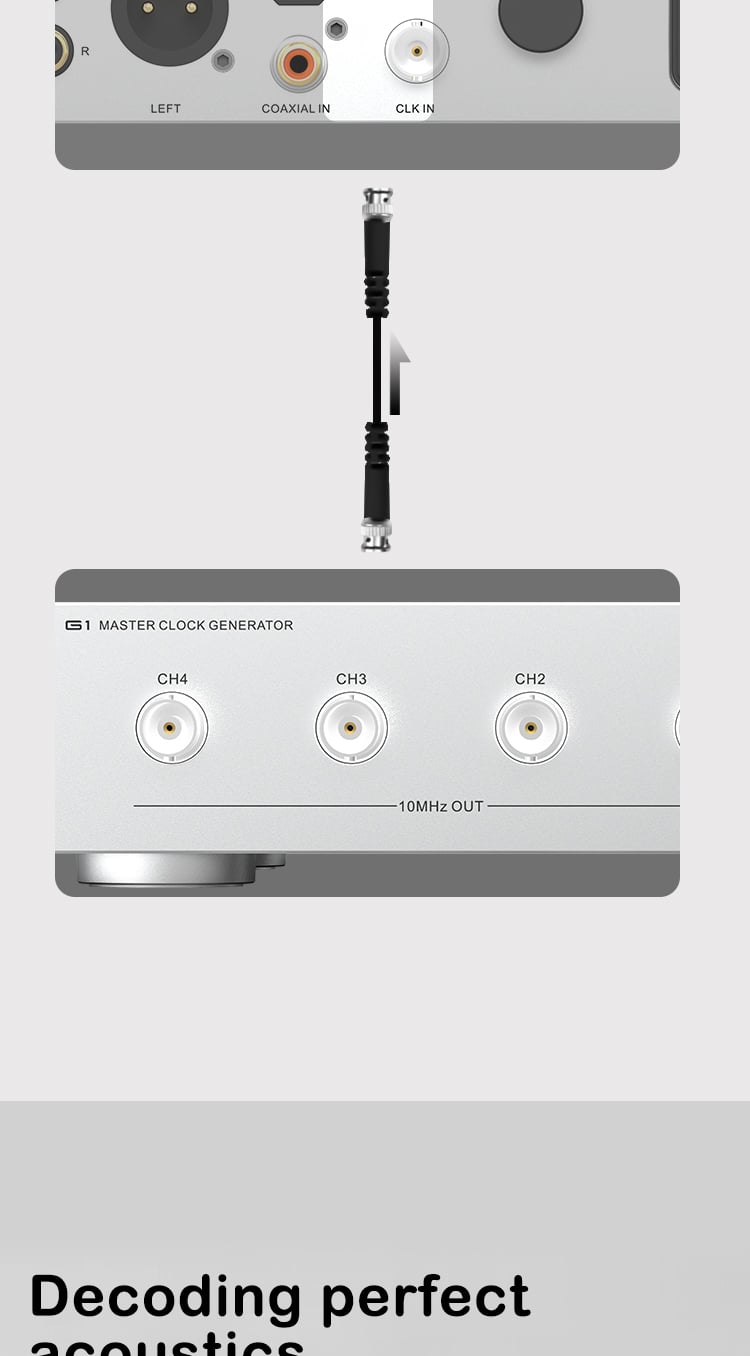

- BNC clock input to lock to an external 10MHz or atomic reference, clock sold separately
- Dual NJU72315 fully balanced true preamp, distortion as low as 0.00013%

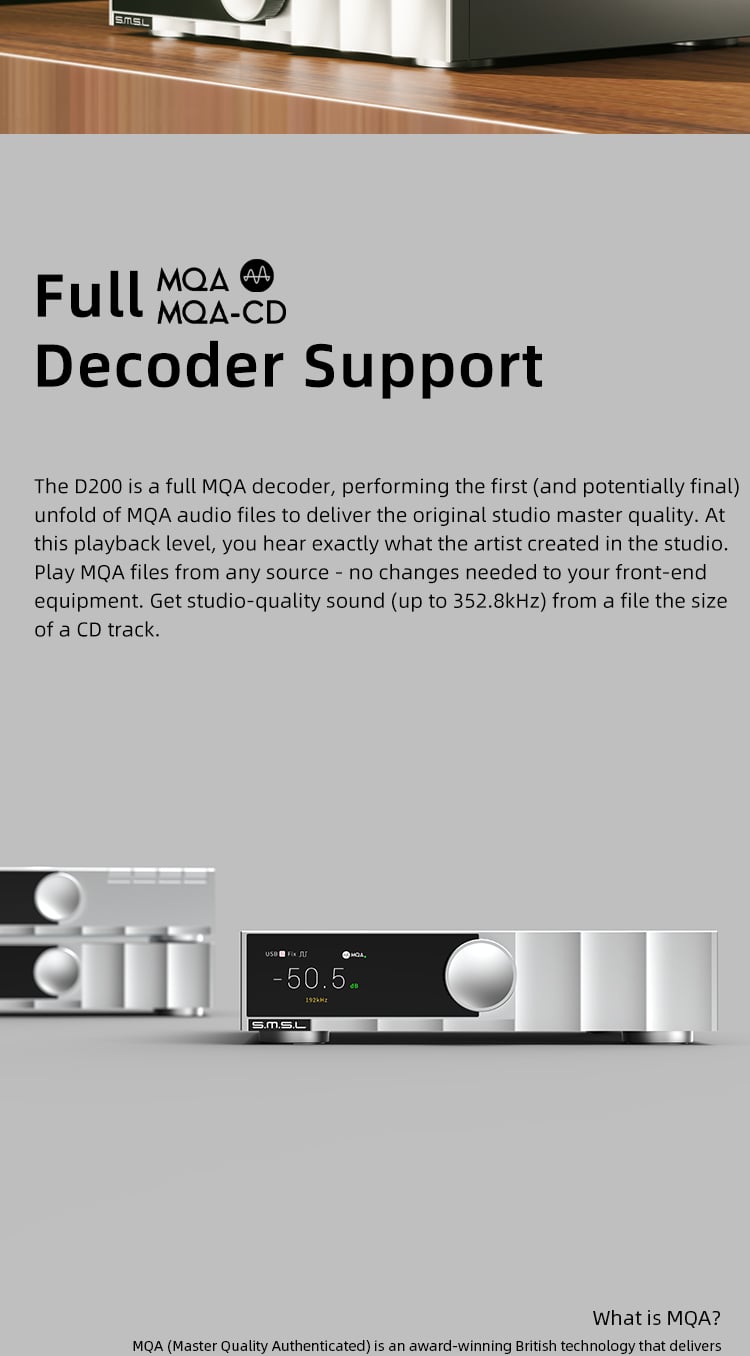

- Full MQA and MQA-CD decoding for studio master quality up to 352.8kHz

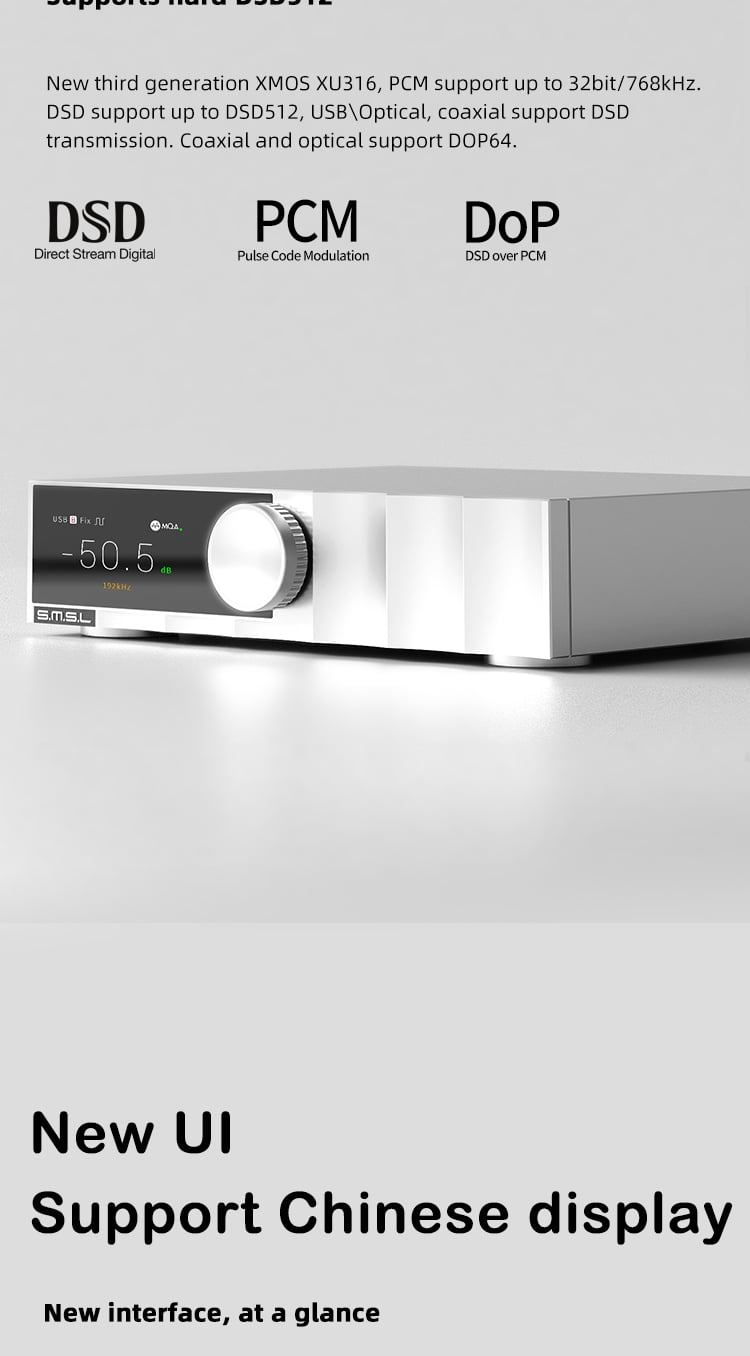

- Third generation XMOS XU316 for PCM 768kHz/32 bit and native DSD512

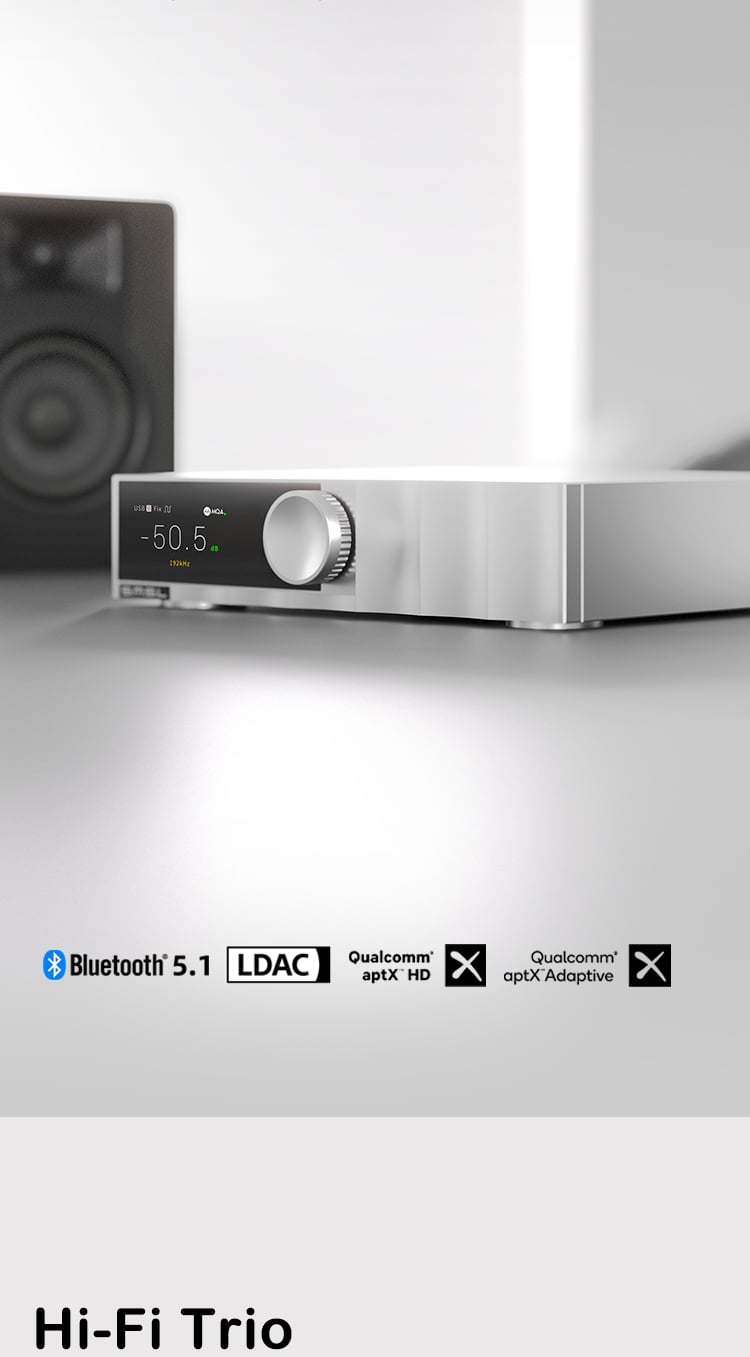

- Bluetooth 5.1 with LDAC and aptX HD, external antenna for signal stability

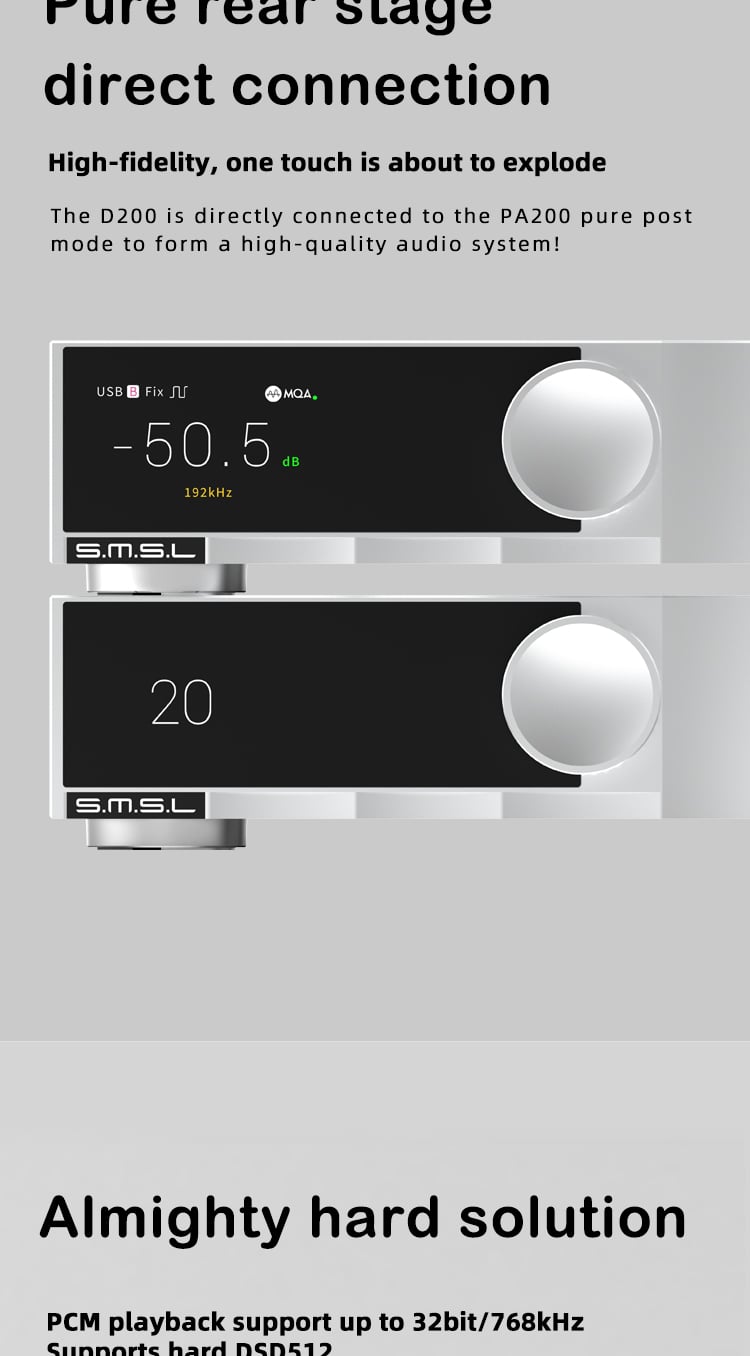

- Three preamp modes, variable or fixed output, to feed a power amplifier directly

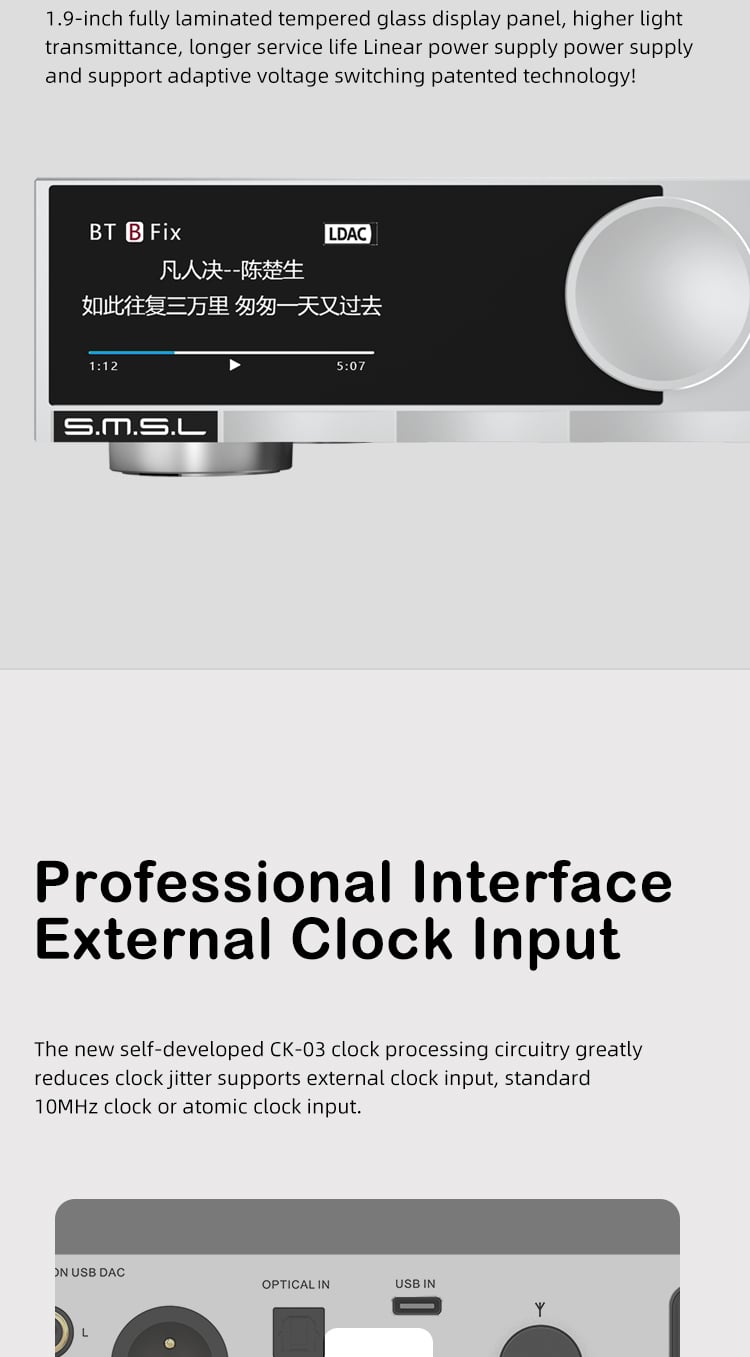

- 1.9 inch laminated tempered glass display for higher light transmittance

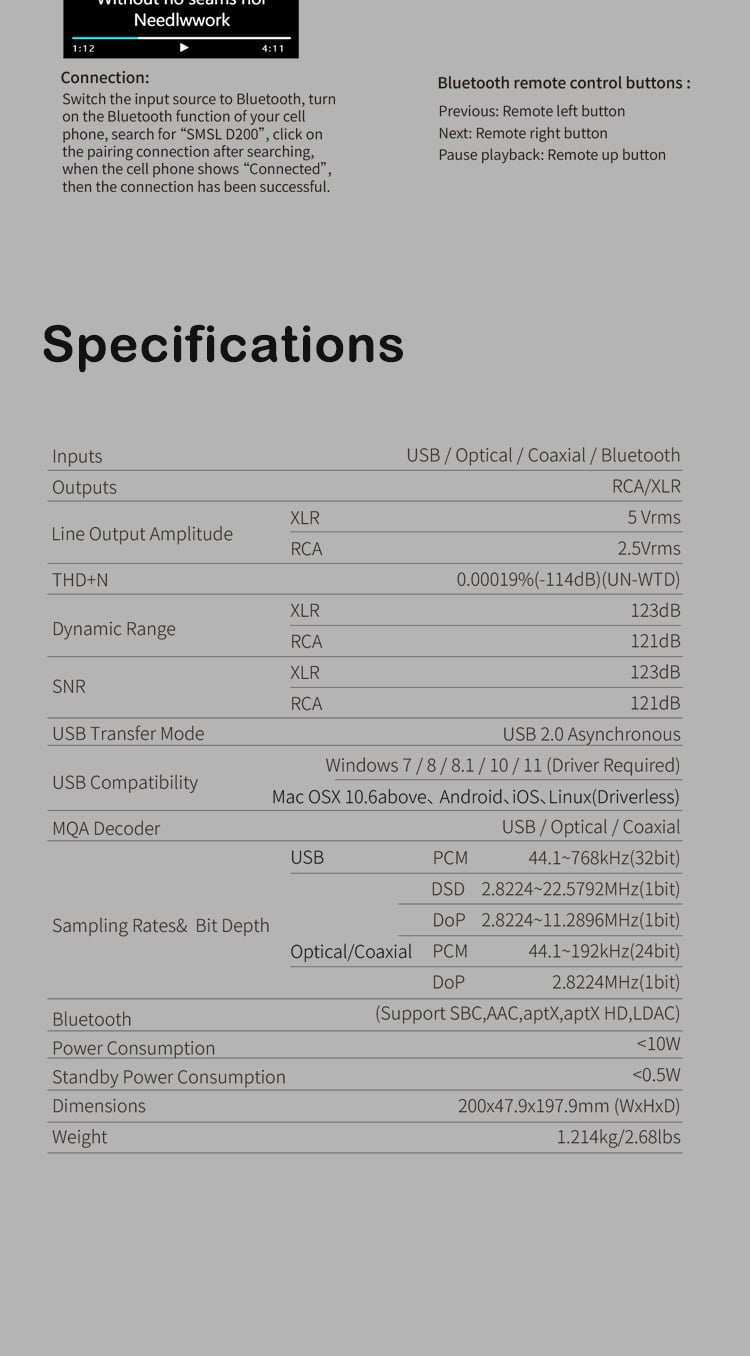

Specifications
| Hardware | |
| DAC Chip | ROHM BD34352EKV |
| USB Controller | XMOS XU316, third generation |
| Clock Circuit | Self developed CK-03 clock processing circuit |
| External Clock Input | Standard 10MHz clock or atomic clock input |
| Preamplifier | Two NJU72315 chips forming a fully balanced true preamp, distortion as low as 0.00013% |
| Display | 1.9 inch fully laminated tempered glass panel, with automatic screen wake up |
| Power Supply | Linear power supply with patented adaptive voltage switching |
| Inputs and Outputs | |
| Inputs | USB / Optical / Coaxial / Bluetooth |
| Outputs | RCA / XLR |
| Line Output Amplitude | XLR 5 Vrms; RCA 2.5 Vrms |
| USB Transfer Mode | USB 2.0 Asynchronous |
| USB Compatibility | Windows 7 / 8 / 8.1 / 10 / 11 (driver required); Mac OSX 10.6 and above, Android, iOS, Linux (driverless) |
| Performance | |

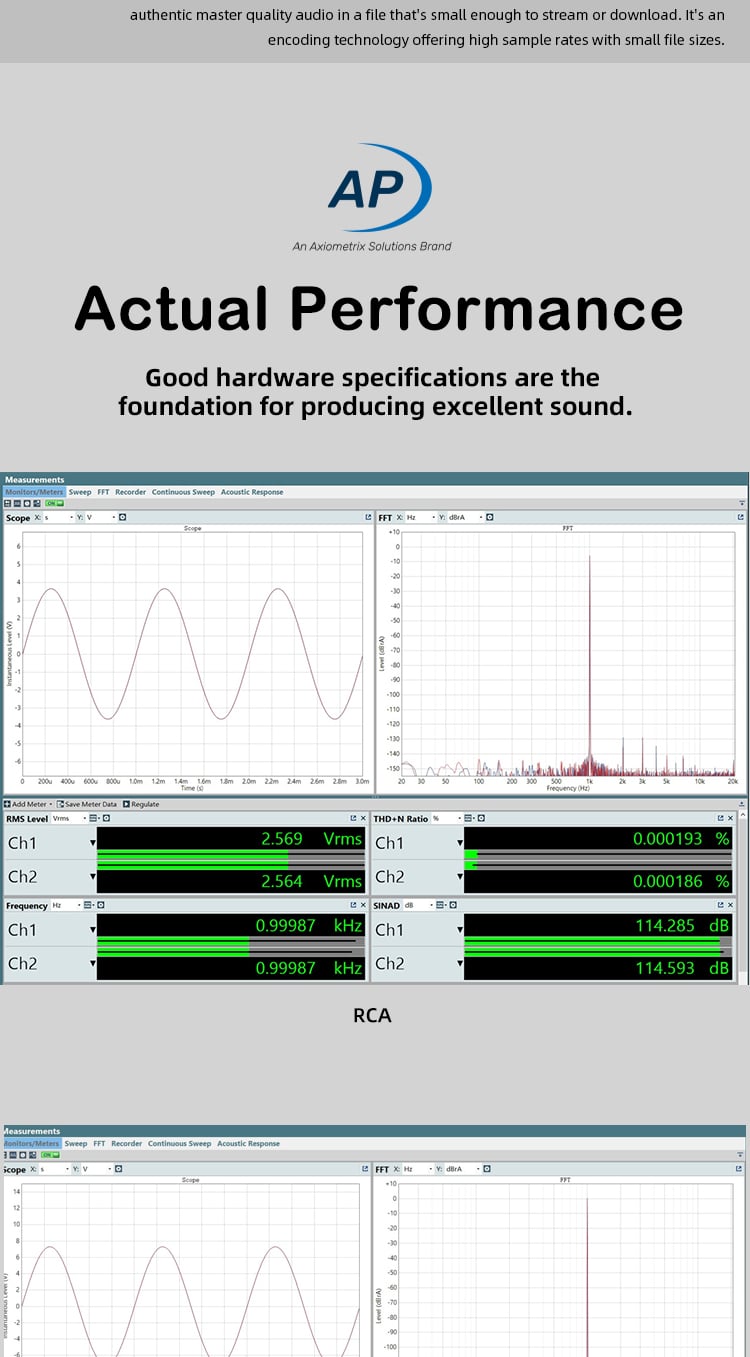

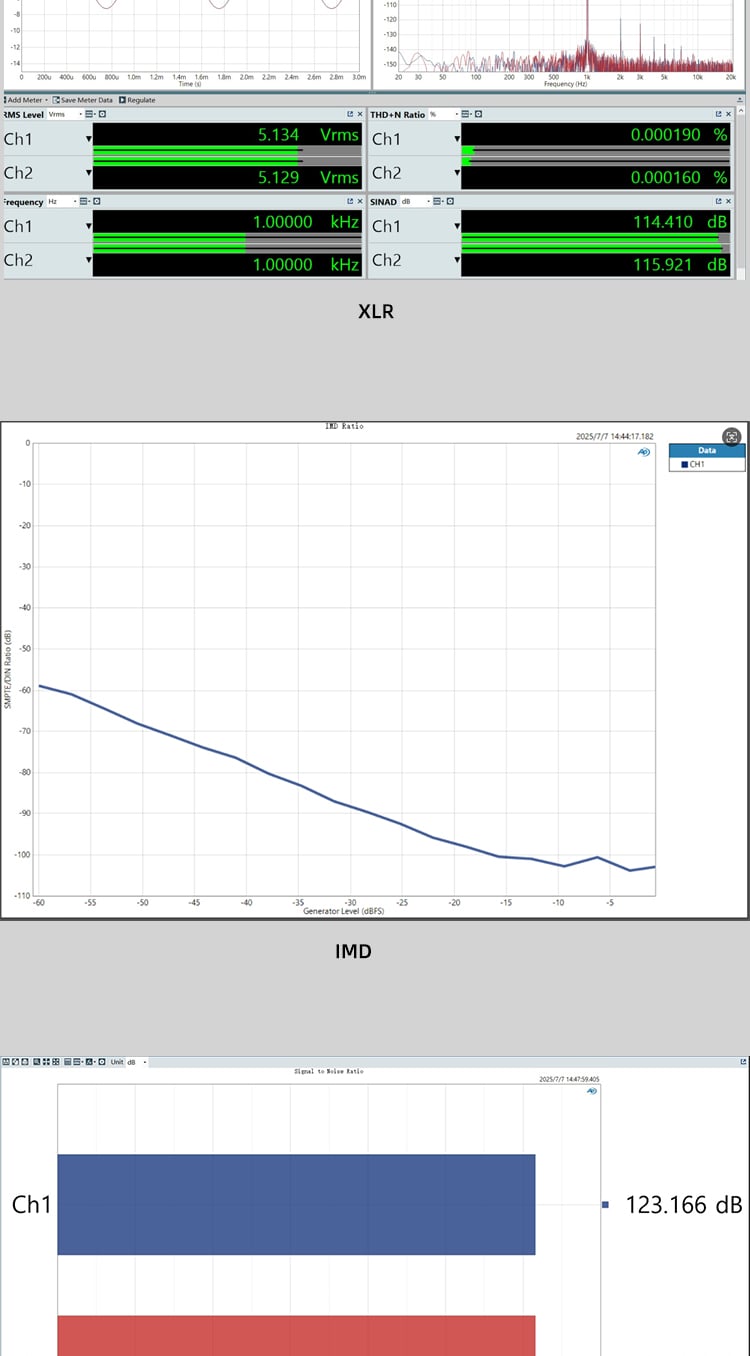

| THD+N | 0.00019% (-114dB) (UN-WTD) |

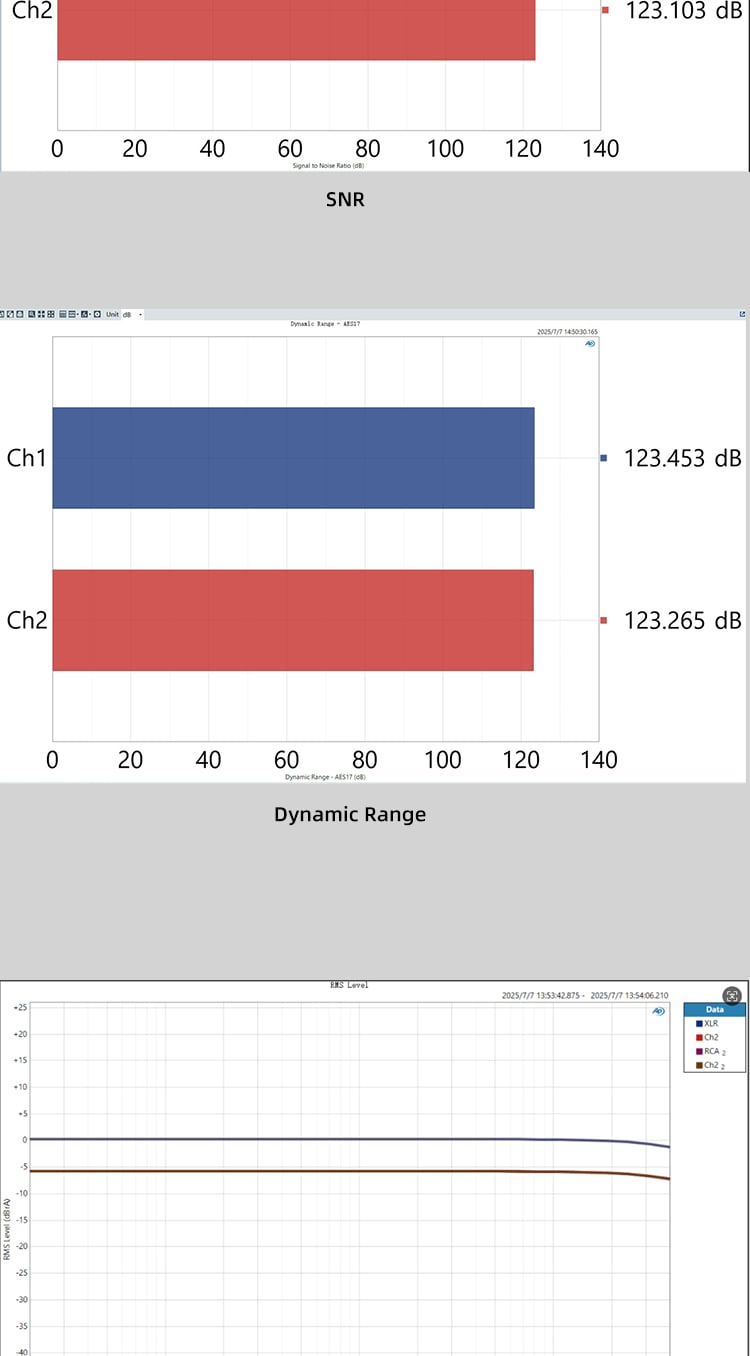

| Dynamic Range | XLR 123dB; RCA 121dB |
| SNR | XLR 123dB; RCA 121dB |
| Format Support | |
| MQA Decoder | USB / Optical / Coaxial, full MQA and MQA-CD decoding |
| Sampling Rates and Bit Depth, USB | PCM 44.1 to 768kHz (32 bit); DSD 2.8224 to 22.5792MHz (1 bit); DoP 2.8224 to 11.2896MHz (1 bit) |
| Sampling Rates and Bit Depth, Optical and Coaxial | PCM 44.1 to 192kHz (24 bit); DoP 2.8224MHz (1 bit) |
| Bluetooth | Bluetooth 5.1, supporting SBC, AAC, aptX, aptX HD and LDAC |
| Settings | |

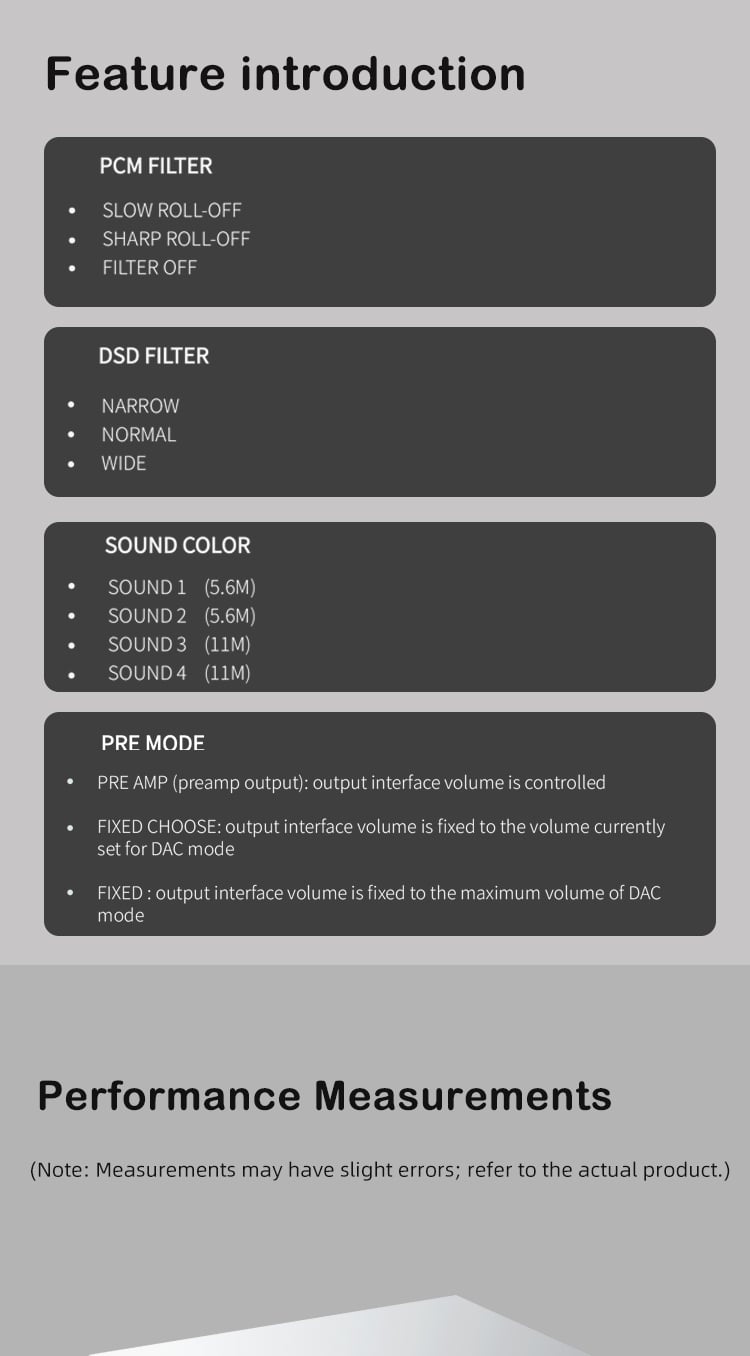

| PCM Filter | Slow roll off, sharp roll off, filter off |
| DSD Filter | Narrow, normal, wide |
| Sound Colour | Sound 1 (5.6M), Sound 2 (5.6M), Sound 3 (11M), Sound 4 (11M) |
| Pre Mode | PRE AMP, output interface volume is controlled; FIXED CHOOSE, output interface volume is fixed to the volume currently set for DAC mode; FIXED, output interface volume is fixed to the maximum volume of DAC mode |

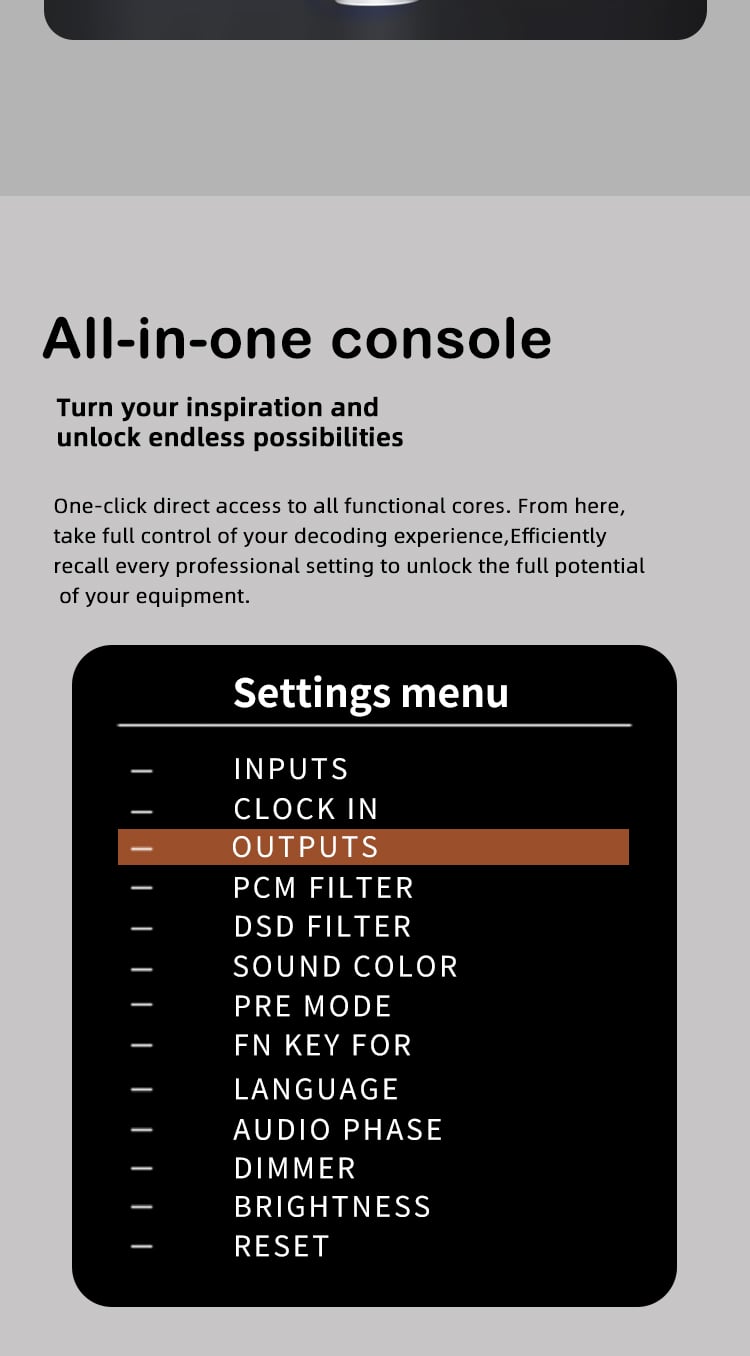

| Settings Menu | Inputs, Clock In, Outputs, PCM Filter, DSD Filter, Sound Color, Pre Mode, Fn Key For, Language, Audio Phase, Dimmer, Brightness, Reset |
| Physical | |
| Power Consumption | Less than 10W |
| Standby Power Consumption | Less than 0.5W |

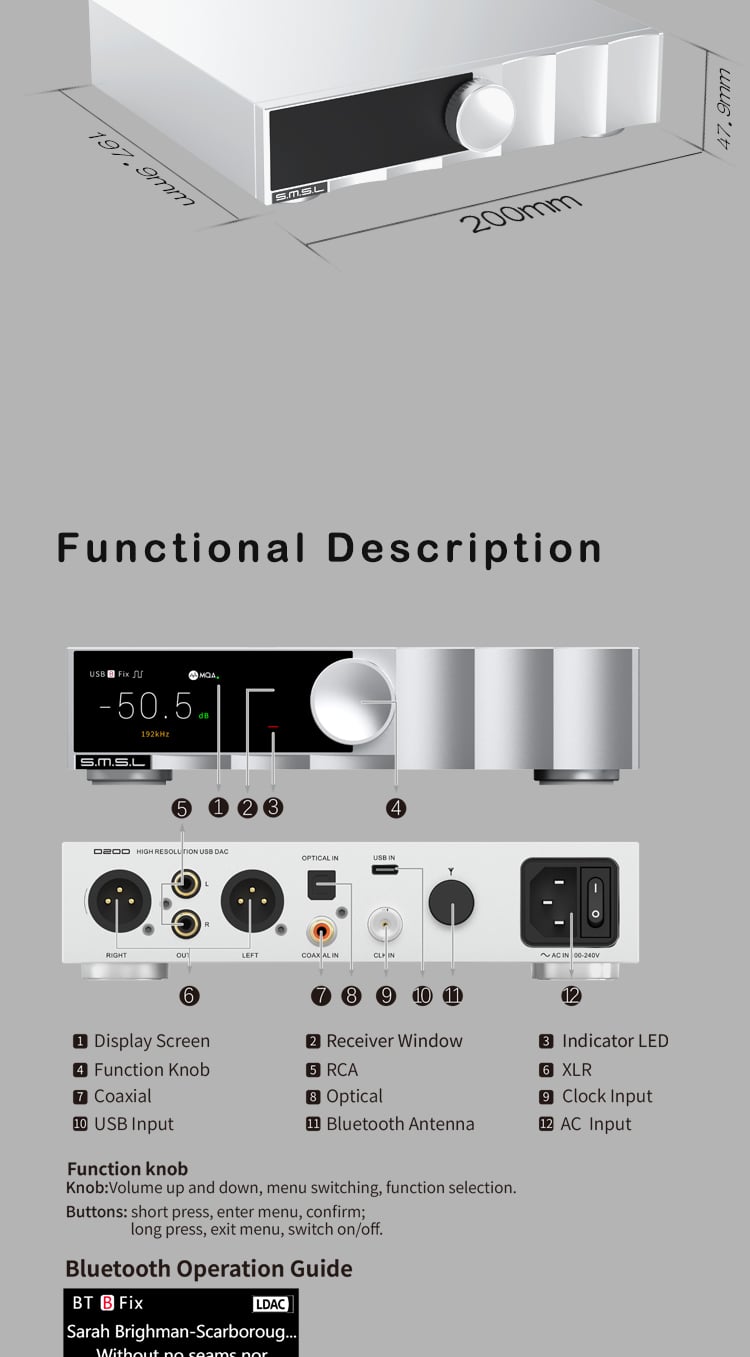

| Dimensions | 200 x 47.9 x 197.9mm (W x H x D) |
| Weight | 1.214kg / 2.68lbs |
