CS43198 × 8Octa DAC Chip Matrix
The new DX260 features the Cirrus Logic flagship DAC, the CS43198. The CS43198 features excellent dynamic range, outstanding resolution of micro details, and an impressively low noise floor, adding up to exceptional performance.
The Octa DAC Chip Matrix with iBasso's implementation guarantees both superb sound quality and DAP leading measurements. The DX260 achieves a THD+N of -123dB, the best among portable players as of 2023. This groundbreaking achievement sets a new standard in the industry.
DX240 takes advantage of the multi-DAC architecture to achieve extraordinary results.
FPGA-MASTER 2.0
As the audio system controller, the DX260's FPGA chip directly requests audio data from the SoC and plays a major role in signal reproduction and maintaining signal integrity. It synchronizes and generates all audio clocks utilizing two NDK femtosecond oscillators to achieve a fully synchronized single clock source. The FPGA-Master 2.0 also achieves picosecond-level precise control governing the DAC clock and FIR filter reconstruction.
FIR Filter - DAC Matrix Magician
Thanks to the new algorithm of FPGA-MASTER2.0, the potential of the CS43198 can be further realised.
Synchronous parallel output mode: this reduces "discrete distortion" between DACs to improve overall performance.
FIR 2x mode, FIR 4x mode: With FPGA-MASTER 2.0, picosecond-level precise control and adjustment of the DAC clock and data is achieved, making each DAC data stream independently adjustable. Through the "delay parallel" of 4 DACs, the DACs form a hardware analog FIR filter, which averages the differences between multiple DACs, reducing distortion and effectively improving sound details and realism.
Android11 + Mango OS
The DX260 comes with the latest Android 11 system, allowing you to easily install streaming APPs for a seamless Android experience. The DX260 efficiently bypasses the SRC at the system level. Whether it's Mango Player or a third-party streaming APP, you can take advantage of the system-level "Non-SRC" feature giving you the highest quality sound from the recording.
The DX260 features the Mango OS, a Linux-based audio system that has been meticulously designed for exceptional audio playback. iBasso has continually improved and optimised Mango OS' underlying driver algorithms, focusing on audio playback. This pure sound system has no WiFi or Bluetooth interference, lower EMI, and a purer listening experience.

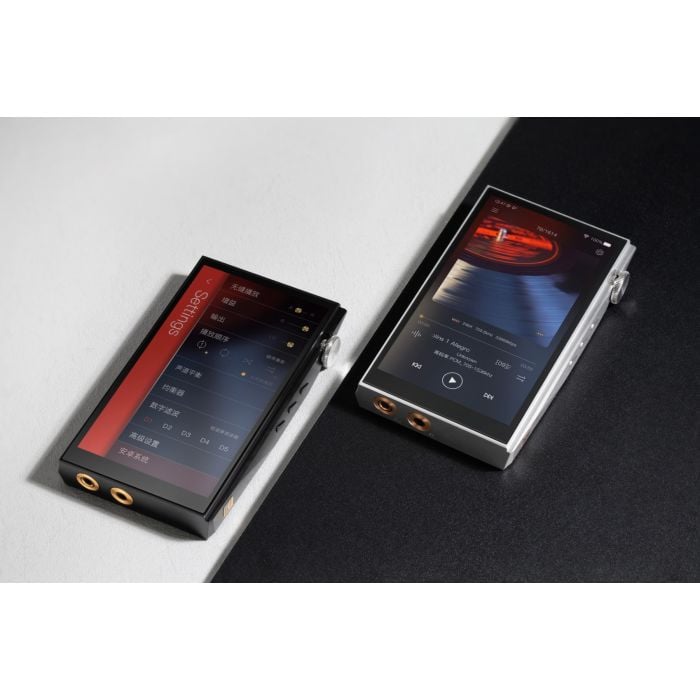

New Industrial Design + User Removeable Back Cover
Introducing iBasso's new ID design, complete with the return of volume control guards and a more industrial look.
The back cover is easily removable with total battery access making replacement of the battery very convenient.
- DX260 Player
- USB-C cable
- Coaxial cable
- TPU Case
- Screen Protector
- Warranty Card
- Quick Start Guide
General
Model | DX260 |
Colour | Black / Silver |
Display |
Sharp 5.0inch , 1080*1920 P, with on-cell capacitive touch panel |
Audio Format Support | APE, FLAC, WAV, WMA, AAC, ALAC, AIFF, OGG, MP3, DFF, DSF, DXD and DST |
USB C | USB 3.1 |
Output Ports |
|
WiFi | 802.11b/g/n/ac (2.4Ghz/5Ghz) |
Bluetooth | V5.0 |
RAM+ROM | 4GB LPDDR4X RAM, 64GB ROM |
Battery | 4400mAh 3.8V li-polymer battery |
Charging Time | 2.5 hours |
Play Time | Up to 14 hours (playback time will vary with content format, volume used and different headphone/IEM loads) |
Size | 123*74.5*17.5 mm |
Weight | 229g |
4.4mm Balanced Headphone Out
Maximum Output Level | 6 Vrms |
Output Power | 1015mW @ 32Ohms, THD <0.5% |
Frequency Response | 10Hz~75kHz -1dB |
S/N | 133dB |
THD+N |
|
Crosstalk | 145dB |
Noise Floor |
< 0.93mV (Low-Gain) |
3.5mm Single Ended Headphone Out
Maximum Output Level | 3 Vrms |
Output Power |
|
Frequency Response | 10Hz~75kHz -1dB |
S/N | 128dB |
THD+N |
|
Crosstalk | 118dB |
Noise Floor |
< 0.85mV (Low-Gain) |
4.4mm Balanced Line Out
Maximum Output Level | 4 Vrms |
Frequency Response | 10Hz~75kHz -1dB |
S/N | 133dB |
Dynamic Range |
134dB |
ThD+N | -123dB |
Crosstalk |
-145dB |
3.5mm Single Ended Line Out
Maximum Output Level | 2 Vrms |
Frequency Response | 10Hz~75kHz -1dB |
S/N | 128dB |
Dynamic Range |
128dB |
ThD+N | -112dB |
Crosstalk |
-115dB |
