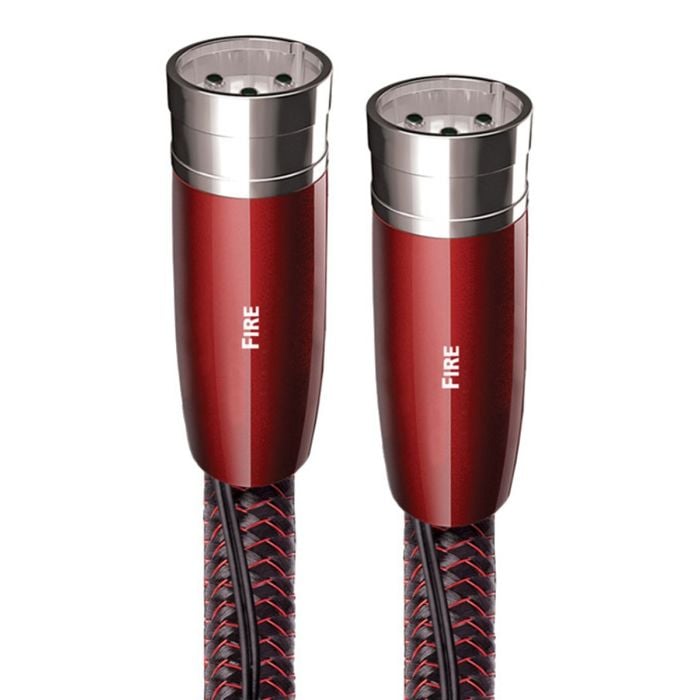

Audioquest XLR Pair Fire

SOLID PERFECT-SURFACE SILVER (PSS) CONDUCTORS
Solid conductors prevent electrical and magnetic strand-interaction. PSS Solid-Silver minimizes distortion caused by grain boundaries and maximizes linear RF Noise-Dissipation.

FEP AIR-TUBE DIELECTRIC
Positive conductors benefit from almost no contact between metal and its FEP insulation, which is notable for its superior dielectric constant and minimal signal interference. Negative conductors benefit from intentionally “lossy insulation” — no air and no FEP helps maximize the negative connection’s different job.

DIELECTRIC-BIAS SYSTEM WITH RADIO FREQUENCY TRAP
All insulation between two or more conductors is also a dielectric whose properties will affect the integrity of the signal. When the dielectric is unbiased, dielectric-involvement (absorption and non-linear release of energy) causes different amounts of time delay (phase shift) for different frequencies and energy levels, which is a real problem for very time-sensitive multi-octave audio. The inclusion of an RF Trap (developed for AudioQuest’s Niagara Series of power products), ensures that radio-frequency noise will not be induced into the signal conductors from the DBS field elements. (DBS, US Pat #s 7,126,055 & 7,872,195 B1)

TRIPLE-BALANCED GEOMETRY (SEPARATE GROUND-REFERENCE CONDUCTOR)
Our Triple-Balanced Geometry uses a separate ground-reference conductor, so the cable's shield is never used as an inferior conductor. Whether prepared with RCA or XLR plugs, the cable's three conductors ensure that the positive and negative signals have equally superior, low-distortion conducting paths.

CARBON-BASED 8-LAYER NOISE-DISSIPATION SYSTEM (NDS)
It's easy to accomplish 100% shield coverage. Preventing captured Radio Frequency Interference (RFI) from modulating the equipment's ground reference requires AQ's Noise-Dissipation System (NDS). Traditional shield systems typically absorb and then drain noise/RF energy to component ground, modulating and distorting the critical "reference" ground plane, which in turn causes a distortion of the signal. NDS's alternating layers of metal and carbon-loaded synthetics "shield the shield," absorbing and reflecting most of this noise/RF energy before it reaches the layer attached to ground.

WEL-TYPE DOUBLE-CONTACT COLD-WELDED REUSABLE PLUGS, HANGING-SILVER PLATING DIRECTLY OVER MACHINED SOLID EXTREME-PURITY RED COPPER
This plug design enables a perfect heat-free connection between cable and plug. The connection between the plug and conductors is made using AQ’s Cold-Welded System, which provides a superior connection that ensures that the structural integrity of the conductor is kept completely intact. The Cold-Welded System refers to a combination of high pressure at the point of contact and the use of copper- or silver-impregnated paste. (Wild Blue Yonder’s silver conductors get silver paste.) XLR plugs are also available.
